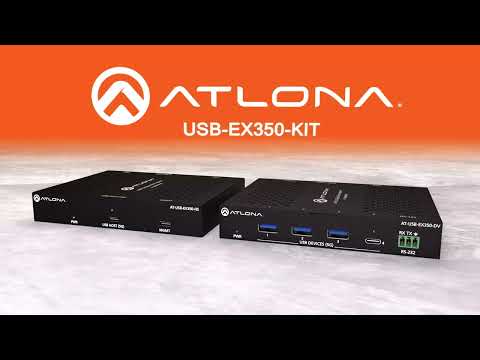

Nederlands (Nederland)Atlona AT-USB-EX350-KIT USB 3.2 Gen 1 Data Extender Set
Item No.AT1259
- USB 3.2 extender set
- Supports USB 3.2 Gen 1 data rate up to 5 Gbps
- Supports USB 2.0 data rate up to 480 Mbps
- USB-C interface for host connection
- Three USB-A and one USB-C for peripheral connections
- LAN port for configuration, monitoring and control over the network
- Configurable VBUS mode for each USB port
- Bi-directional remote power
- Compact enclosure
The Atlona AT-USB-EX350-KIT is a data only USB 3.2 extender kit. It supports extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single Category 6A U/FTP cable.The USB-EX350-KIT is ideal for video conferencing or remote instruction applications The USB-EX350-KIT is comprised of two endpoints. The host endpoint includes a USB-C port for connection to hosts such as laptops, computers, or other AV equipment that supports USB connectivity including many Omega Series products. The device endpoint includes three USB Type A ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones, speakers, and other peripherals. Bidirectional remote power allows the kit to be powered by the included power supply connected to either the host or device endpoint.
Low stock
Description
- USB 3.2 extender set
- Supports USB 3.2 Gen 1 data rate up to 5 Gbps
- Supports USB 2.0 data rate up to 480 Mbps
- USB-C interface for host connection
- Three USB-A and one USB-C for peripheral connections
- LAN port for configuration, monitoring and control over the network
- Configurable VBUS mode for each USB port
- Bi-directional remote power
- Compact enclosure
The Atlona AT-USB-EX350-KIT is a data only USB 3.2 extender kit. It supports extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single Category 6A U/FTP cable.The USB-EX350-KIT is ideal for video conferencing or remote instruction applications The USB-EX350-KIT is comprised of two endpoints. The host endpoint includes a USB-C port for connection to hosts such as laptops, computers, or other AV equipment that supports USB connectivity including many Omega Series products. The device endpoint includes three USB Type A ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones, speakers, and other peripherals. Bidirectional remote power allows the kit to be powered by the included power supply connected to either the host or device endpoint.
Specifications
- Brand
- Atlona
- Product category
- Extenders / USB
- Connections
- RJ45, Terminal block, USB
- Connections (in)
- RJ45 female (x2), USB C female (x2)
- Connections (out)
- RJ45 female (x1), USB A female (x3), USB C female (x1)
- Extender category
- 51-100 m
- Max. extension distance
- 100 m
- Extension cable
- CATx (x1)
- Extension connector
- RJ45
- Extension protocol
- Own
- Other signals
- RS-232
- USB version
- USB 3.2 Gen 1 - SuperSpeed (USB 3.0)
- Data transfer rate
- 5 Gbps
- Power supply
- Power over HDBaseT
- Included
- Power adapter, USB-A to USB-C cable, captive screw connectors, mounting brackets, screws
- Brand item no.
- AT-USB-EX350-KIT
- EAN code
- 8716065582130
