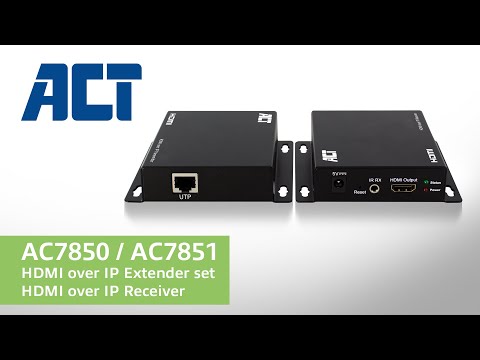

ACT Receiver unit for AC7850
Item No.
AC7851
- HDMI receiver unit for use with AC7850
- Connect up to 12 receivers for use with AC7850
- Maximum resolution 1080p @ 60Hz
- IR-support
- Integrated mounting bracket
The AC7851 HDMI over IP Receiver must be used in combination with the AC7850 HDMI over IP Extender - set. HDMI over IP allows you to extend an HDMI signal via your home IP network with a maximum resolution of 1080p @ 60Hz. The AC7851 Receiver has an integrated mounting bracket and comes with an IR receiver for remote controlling your connected A/V device.
Description
- HDMI receiver unit for use with AC7850
- Connect up to 12 receivers for use with AC7850
- Maximum resolution 1080p @ 60Hz
- IR-support
- Integrated mounting bracket
The AC7851 HDMI over IP Receiver must be used in combination with the AC7850 HDMI over IP Extender - set. HDMI over IP allows you to extend an HDMI signal via your home IP network with a maximum resolution of 1080p @ 60Hz. The AC7851 Receiver has an integrated mounting bracket and comes with an IR receiver for remote controlling your connected A/V device.
Specifications
| Brand | ACT |
| Product category | HDMI extender sets |
| Connections | HDMI, RJ45 |
| Connections (in) | RJ45 female (x1) |
| Connections (out) | HDMI A (full-size) female (x1) |
| Extender category | 51-100 m |
| Max. extension distance | 100 m |
| Extension over | CATx |
| Extension cable | CATx (x1) |
| Extension connector | RJ45 |
| Extension protocol | IP |
| Max. resolution @ 60Hz | 1080p |
| Video signal | HDMI |
| Supported features | HDCP |
| HDMI specification | HDMI High Speed |
| Other signals | IR |
| Power supply | External power supply |
| Included | Power adapter, IR-RX cable |
| Brand item no. | AC7851 |
| EAN code | 8716065403558 |
